1500RPM 21KW 26KVA Cummins Diesel Powered Generator Set
Product Details:
- Place of Origin: CHINA
- Brand Name: ACEPOW
- Certification: CE,ISO, SASO
- Model Number: 4B3.9-G1
Payment & Shipping Terms:
- Minimum Order Quantity: 1 PCS
- Price: Negotiate
- Packaging Details: NUDE PACKING,PLYWOOD CASE
- Delivery Time: 25 DAYS
- Payment Terms: L/C, D/P, T/T
- Supply Ability: 10000SETS/YEAR
- Product description
| Engine Model: | 4B3.9-G1 | Rated Output: | 24kw |
|---|---|---|---|
| Governing Method: | Mechanical | Intaking Method: | Natural |
| Oil Volume: | 9 | Compression Ration: | 16.5:1 |
| High Light: | 21KW Diesel Powered Generator,26KVA Diesel Powered Generator,1500RPM cummins generator 26kva | ||

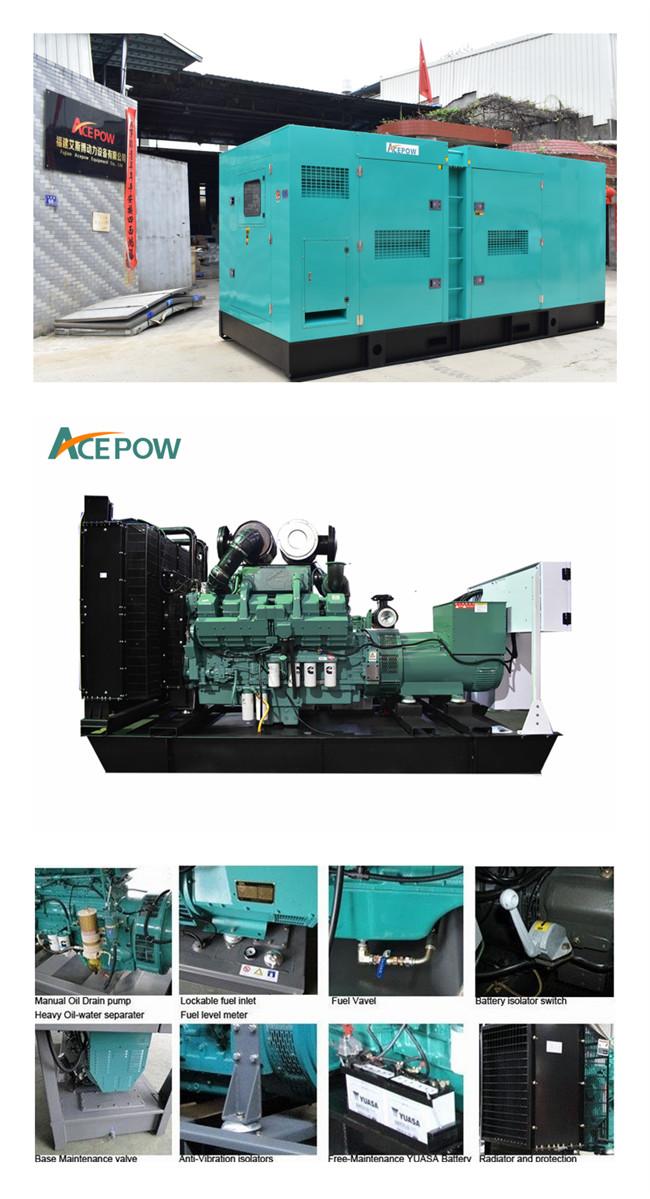

21KW 26KVA Cummins Diesel Generator Set
ACEPOW Genset:
ACEPOW Disesel Generating Sets is the product of full experienced engineers designing series of modern generators which is applicable forconstruction or for back-up power.The ACEPOW generators has a unique,compact design using the most reliable diesel engine in China featuring low fuel consumpton,low maintenance cost.long lie,easy to operate and transpor.Doors beside the generators are designed to permit easier access for seivice.The digitalcontrol panel displays the actual ampere rating,-voltage,frequency and warning display to give immediate information to the operator.Control panel modules are replaceable at low cost.
Engine Technical Data:
| Engine Model | 4B3.9-G1 | |||
| Engine Brand | DCEC Cummins | |||
| Prime power/Standby power (kw) | 24/27 | |||
| Number of Cylinders | 4 | |||
| Cylinders Arrangerment | Vertical in-line | |||
| Bore/Stroke (mm) | 102/120 | |||
| Speed (RPM) | 1500 | |||
| Displacement (L) | 3.9 | |||
| Compression Ratio | 17.3:1 | |||
| Air Intake system | Natural aspirated | |||
| Cooling Method | Water cooled | |||
| Coolant Capacity (L) | 7.2 | |||
| Prime power (L/h) | 7.1 | |||
| Standby Power (L/h) | 8 | |||
| Governing Type | Mech / Electric | |||
| Governor Regulation | ≤8% | |||
| Battery (V) | 12 | |||
| Fuel System | ||||
| Fuel Tank | Steel | |||
| Fuel Tank Capacity (L) | 60 | |||
| Fuel tank type | Bottom | |||
| Recommended Fuel Type | 0# or ASTM2 | |||
| Injection System | BYC A Direct Injection | |||
| Fuel Consumption: | ||||
| APC-23 | 100% Load | 75% Load | 50% Load | 25% Load |
| L/h | 7.1 | 5.7 | 4.3 | 2.8 |
| (Based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869,Class A2) | ||||
