30KVA Water Cooling 230V Silent Diesel Generator
Product Details:
- Place of Origin: CHINA
- Brand Name: ACEPOW
- Certification: CE,ISO, SASO
- Model Number: APC-30
Payment & Shipping Terms:
- Minimum Order Quantity: 1 PCS
- Price: Negotiate
- Packaging Details: NUDE PACKING,PLYWOOD CASE
- Delivery Time: 25 DAYS
- Payment Terms: L/C, D/P, T/T
- Supply Ability: 10000SETS/YEAR
- Product description
| Type: | Silent Diesel Generator | Usage: | Common Units, Standby Unit, Emergency Crew |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Free Spare Parts | Condition: | New |
| Key Points: | Easy To Operate,Automatic,Energy Saving | Package: | Plywood Case |
| Rated Voltage: | 400/230V,380/220V | Speed: | 1500/1800rpm |
| Frequency: | 50Hz Or 60Hz | Genset Power: | 30KVA 24KW |
| High Light: | 1800 RPM Silent Diesel Generator,230V Silent Diesel Generator,30KVA super quiet diesel generator | ||
Warranty On Global Silent Diesel Generator 30kva 3 Phase Gen Power Diesel Generator Plant Closed Water Cooling
Features :
• CUMMINS engine
• STAMFORD Alternator,Class H
• Genset Canopy IP44 protection,Control panel IP56 protection
• Speed governor: Mech governor
• Excitation system: Brushless
• 50℃ radiator
• Fire extinguisher
• Oil pump on the engine
• Lockable battery isolator switch
• Powder coated canopy
• Vibration isolators between engine/Alternator and base frame
• Integrated wiring design
• High water temperature protection
• Steel base frame with forkslots
• Big daily fuel tank

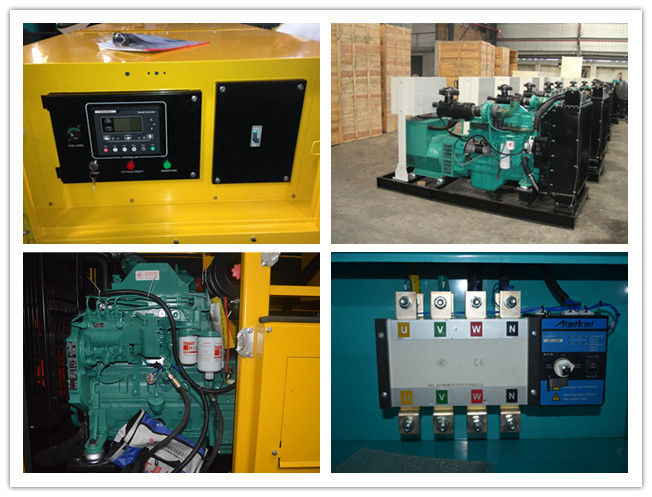

Control System
Smartgen HGM6120 Control System
Observation Window and
Control Door
Air Breaker
External Cable
Connection
Cable Line Slot
| Output Ratings |
| Generating Set Model | Prime | Standby | ||||
| APC-30 | 30kVA/24kW | 33kVA/27kW | ||||
| Ratings and Performance Data |
| Engine Brand | DCEC Cummins | |||
| Engine Model | 4BT3.9-G1 | |||
| Alternator Brand | Stamford | |||
| Alternator Model | BC184G / S0L2-P1 | |||
| Control System | Smartgen HGM6120N | |||
| Engine Technical Data | ||||
| Engine Model | 4BT3.9-G1 | |||
| Engine Brand | DCEC Cummins | |||
| Prime power/Standby power (kw) | 36/40 | |||
| Number of Cylinders | 4 | |||
| Cylinders Arrangerment | Vertical in-line | |||
| Bore/Stroke (mm) | 102/120 | |||
| Fuel System | ||||
| Fuel Tank | Steel | |||
| Fuel Tank Capacity (L) | 60 | |||
| Fuel tank type | Bottom | |||
| Recommended Fuel Type | 0# or ASTM2 | |||
| Injection System | BYC A Direct Injection | |||
