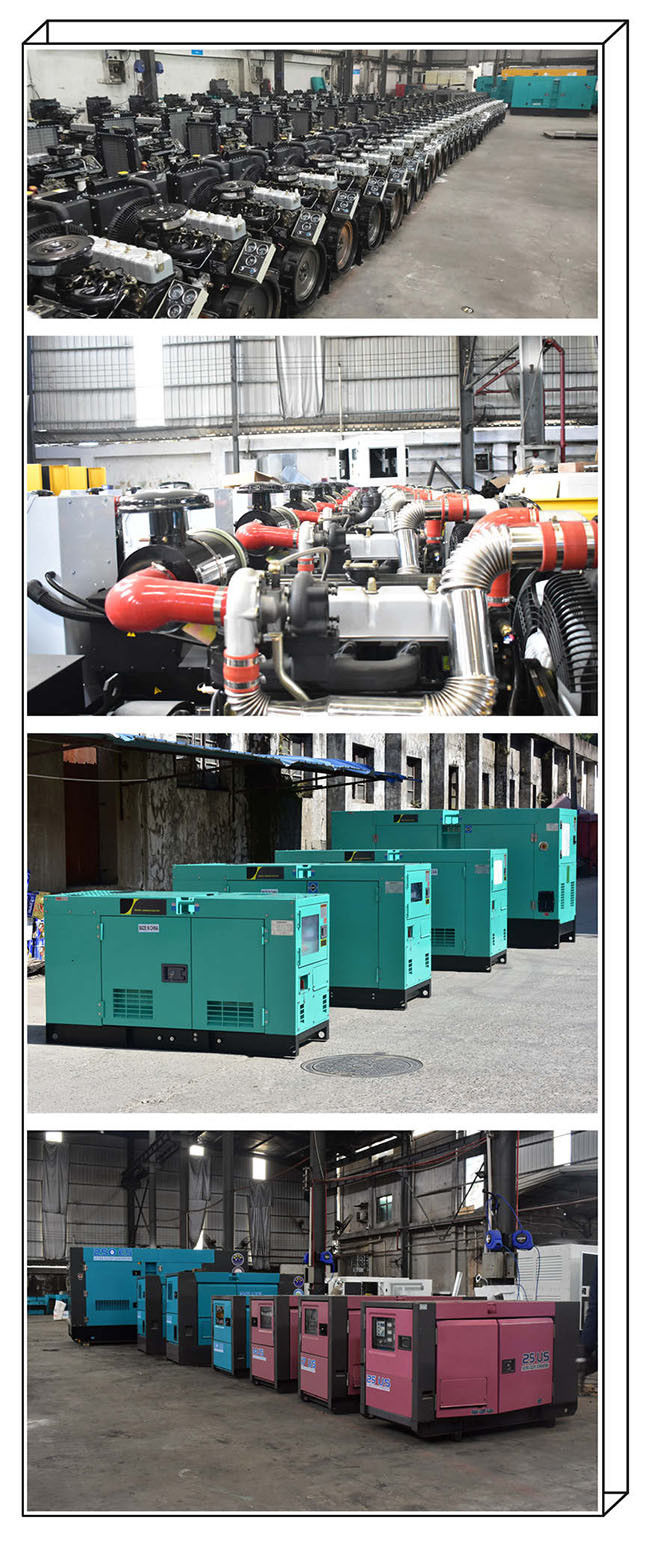

15KVA 12KW Stamford Noiseless Portable Generator
Product Details:
- Place of Origin: CHINA
- Brand Name: ACEPOW
- Certification: CE,ISO, SASO
- Model Number: APY-15
Payment & Shipping Terms:
- Minimum Order Quantity: 1 PCS
- Price: Negotiate
- Packaging Details: NUDE PACKING,PLYWOOD CASE
- Delivery Time: 25 DAYS
- Payment Terms: L/C, D/P, T/T
- Supply Ability: 10000SETS/YEAR
- Product description
| Product Name: | Silent Diesel Generator | Engine Brand: | Yangdong |
|---|---|---|---|
| Engine Model: | YD4KD | Frequency: | 50HZ 60HZ |
| Alternator: | Stamford/Leroy Somer/Marathon | Color: | Yellow,blue |
| High Light: | 1500RPM Noiseless Portable Generator,15KVA Noiseless Portable Generator,12KW silent electric generator | ||
15KVA 12KW Super Silent Diesel Generator Set 50HZ Yangdong Engine YD4KD Low Noise Genset Canopy
ACEPOW Genset:
ACEPOW Disesel Generating Sets is the product of full experienced engineers designing series of modern generators which is applicable for construction or for back-up power.
The ACEPOW generators has a unique,compact design using the most reliable diesel engine in China featuring low fuel consumption,low maintenance cost,long life,easy to operate and transport.Doors beside the generators are designed to permit easier access for service.The digital control panel displays the actual ampere rating,-voltage,frequency and warning display to give immediate information to the operator.Control panel modules are replaceable at low cost.
| 50HZ YANGDONG DIESEL GENERATOR 15KVA SPECIFICATION | ||||||
| Genset Model | Kw | Kva | Alternator | |||
| Rated | Standby | Rated | Standby | Model | Kw | |
| APYD-12 | 12 | 13.2 | 15.0 | 16.5 | BC164D | 12.8 |
| Engine model | Rated Power | kWe | Governor | Type | Combustion Chamber Type | Number of cylinder |
| YD4KD | 15KW/1500rpm | 12KW | Mechanical | Vertical, Water cooling, four stroke | Direct injector | 4 |
| Bore(mm) | Stoke(mm) | Compression ratio | Total Displacement(L) | Fuel consumption (g/kw.h) | Intake Type | Cooling Methed |
| 80 | 90 | 18 | 1.809 | ≤250.5 | Natural | Forced watercooling |
| Control system | 1. Base Frame: Heavy duty steel channel base frame. 2. Radiator: With safety guard. 3. Vibration Damper Vibration damper between Engine/Alternator and base frame 4. Breaker: 3-pole output manual circuit breaker as standard, 4 poles for option 5. Controller: DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option. 6. Silencer: Heavy duty industrial type silencer with flexible bellow,elbow. 7. Battery: Varta Brand,high capacity sealed maintenance free battery c/w battery cables. 9. Fuel Tank: 8 hours base fuel tank | |||||
